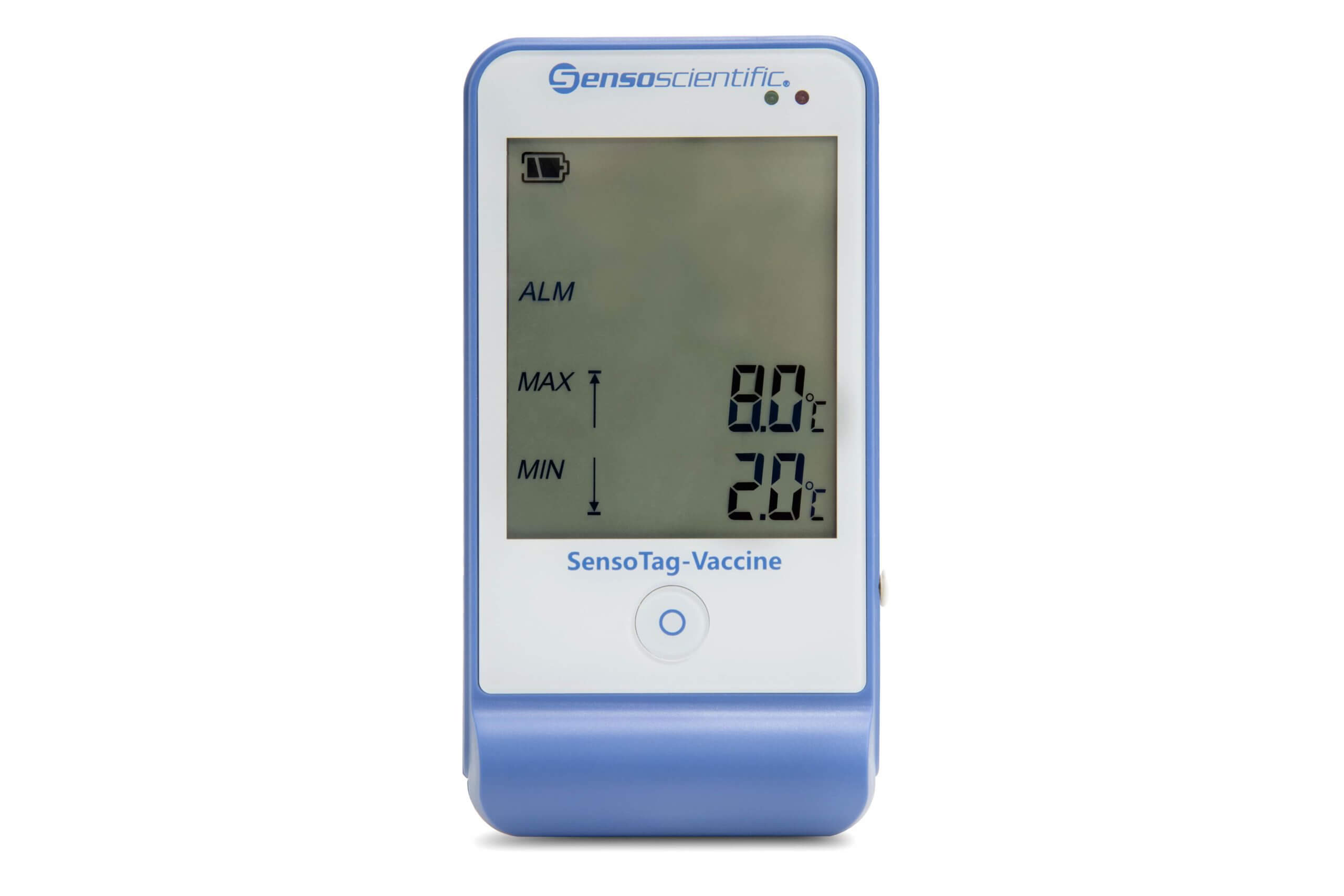

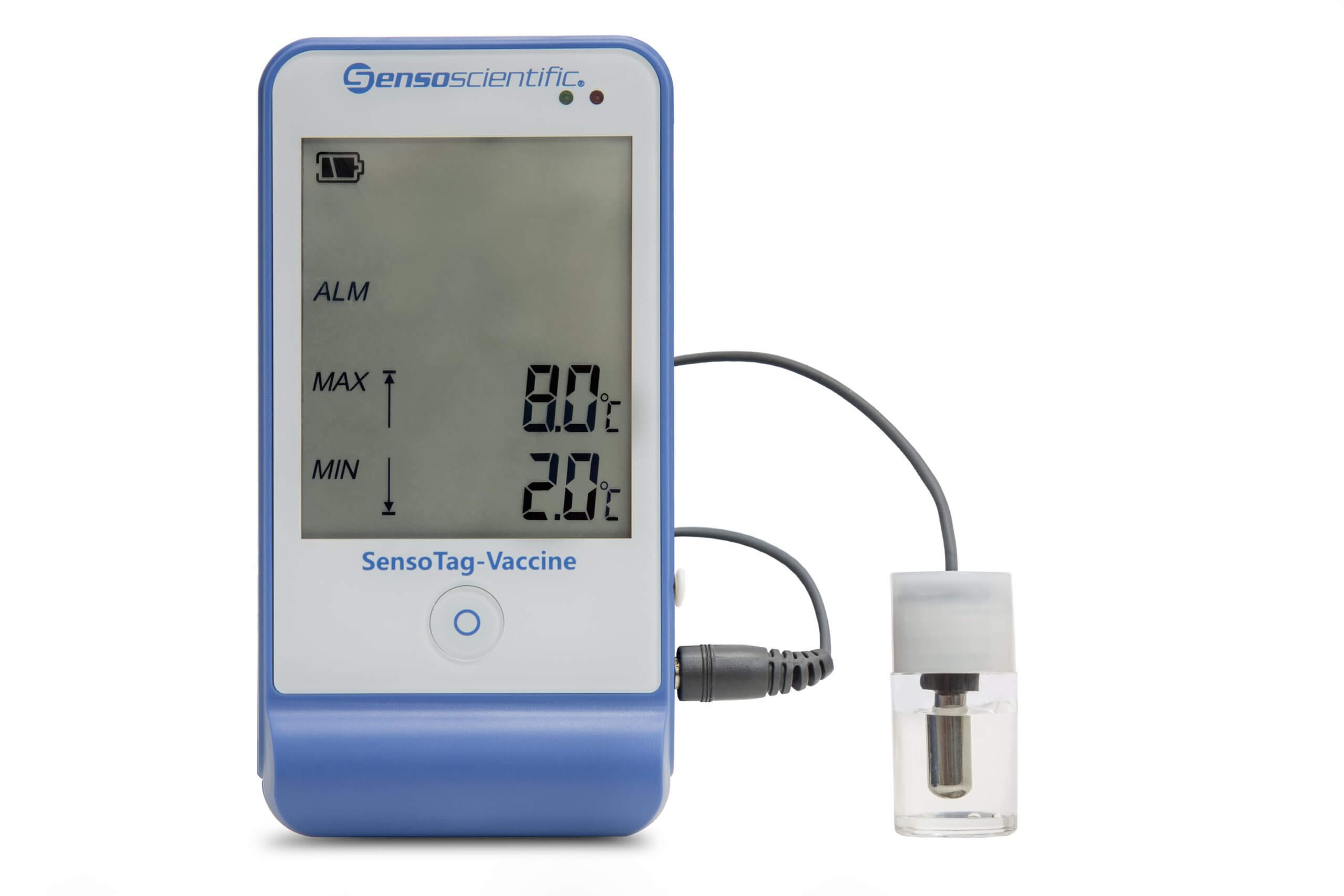

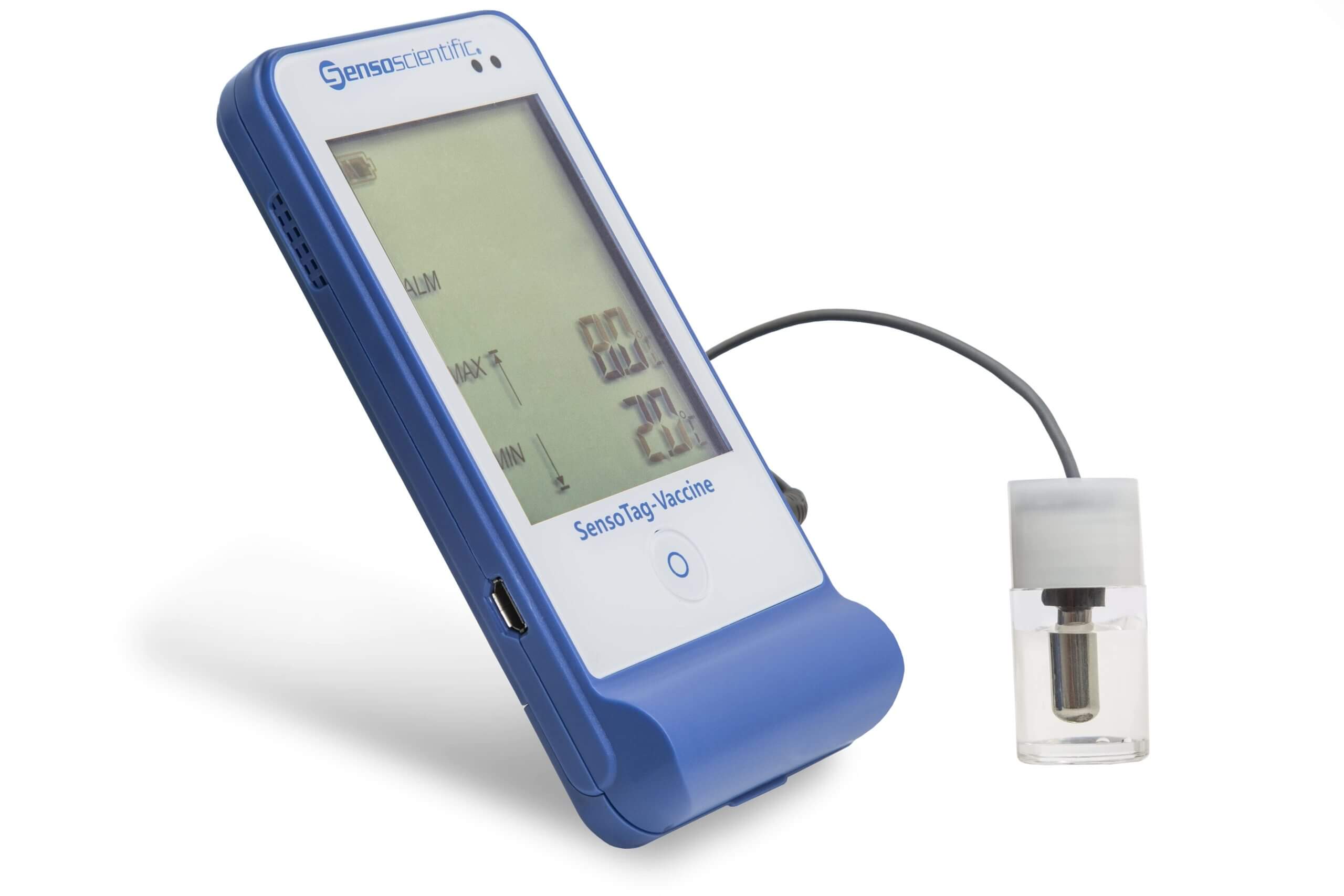

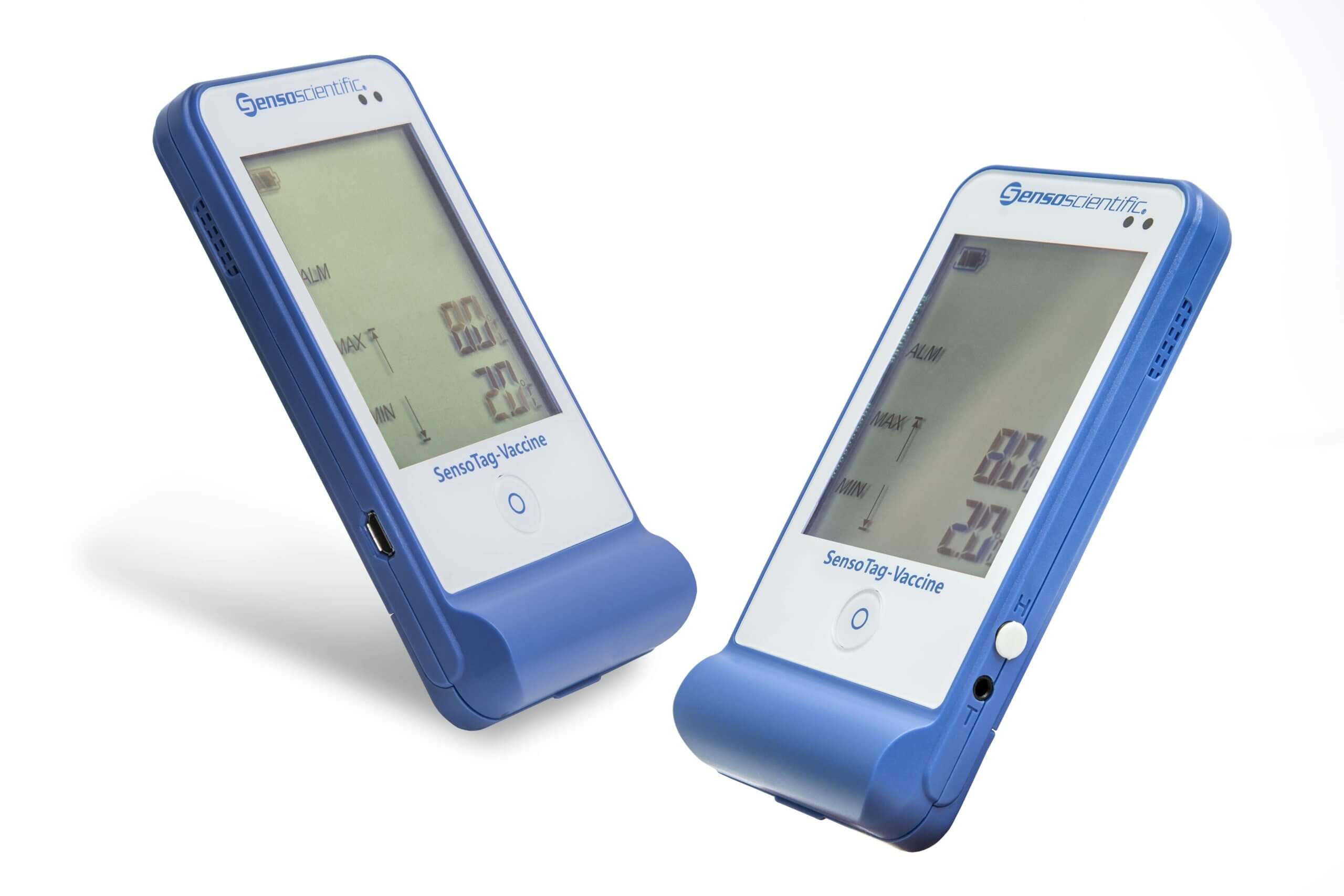

SensoTag Vaccine Temperature Logger
SENSOTAG-V
Monitor vaccine temperatures between -40°C to 85°C (-40°F to 185°F) from transportation to storage.
Request Pricing and Information
"*" indicates required fields
Request Pricing and Information
"*" indicates required fields
- Product Description
- Key Features
- Product Specifications
SensoScientific’s SensoTag-Vaccine series simplifies vaccine temperature monitoring from transportation to storage with precision and efficiency. These digital data loggers store up to 16,000 data points locally, easily accessible via USB. Capable of monitoring vaccine temperatures between -40°C and 85°C (-40°F to 185°F), the device automatically shortens the reading interval when temperatures fall outside the allowable range, ensuring detailed data collection during critical events. The large onboard LCD screen displays current, minimum, and maximum temperatures, alarms, and battery life at a glance. Fully CDC and VFC compliant, each data logger includes a NIST traceable calibration certificate, making it a trusted solution for vaccine temperature monitoring.
| ● Range: -40°C to 85°C (-40°F to 185°F) | ● 16,0000 Data Points Stored Locally | ● NIST Traceable Certificate of Calibration |
| ● Ideal for Transportation Operations | ● Onboard Display to Satisfy CDC Requirements | ● Data Measurements in °C and °F |
| ● CDC and VFC Compliant | ● Multi-LED for Alarm Status | ● Automatic Reading Interval Escalations |
| ● Customizable Recording Intervals | ● Data Access via USB | ● Current, Min, and Max Temperature Display |
| ● Audio and Visual Alerts on Device | ● FDA 21 CFR Part 11 Compliant | ● Dual Power ― Battery & USB Power |
| Temperature Range: | -40°C to 85°C (-40°F to 185°F) |
| Accuracy: | ±0.5°C (-20°C to 40°C); ±1°C (Others) |
| Resolution: | Temperature 0.1°C |
| Ambient Operating Range: | -30°C to 70°C (-22°F to 158°F). *At low-temperature environments, the LCD screen will display records at a slower rate. This is corrected when the ambient temperature returns to normal. |
| Record Capacity: | 16,000 Data Points (Max) |
| Record Interval: | 10 Sec – 24 Hour Continuously Set |
| Data Interface: | USB |
| Alarms: | Visual and Audio Alarm Indicators |
| Power Supply: | (1) Single-use 3.6V Lithium Battery; Optional ― USB Power Supply |
| Battery Life: | Two years at room temperature with 15-minute record interval and buzzer alarm disabled. |
| Dimensions: | Height: 4.64″ (118mm) |
| Width: 2.42″ (61.5mm) | |
| Thickness: 0.75″ (19mm) | |
| Certificates: | NIST Traceable Certificate at Device Level |
| Warranty: | 1-Year Warranty |
Product Description
SensoScientific’s SensoTag-Vaccine series simplifies vaccine temperature monitoring from transportation to storage with precision and efficiency. These digital data loggers store up to 16,000 data points locally, easily accessible via USB. Capable of monitoring vaccine temperatures between -40°C and 85°C (-40°F to 185°F), the device automatically shortens the reading interval when temperatures fall outside the allowable range, ensuring detailed data collection during critical events. The large onboard LCD screen displays current, minimum, and maximum temperatures, alarms, and battery life at a glance. Fully CDC and VFC compliant, each data logger includes a NIST traceable calibration certificate, making it a trusted solution for vaccine temperature monitoring.
Key Features
| ● Range: -40°C to 85°C (-40°F to 185°F) | ● 16,0000 Data Points Stored Locally | ● NIST Traceable Certificate of Calibration |
| ● Ideal for Transportation Operations | ● Onboard Display to Satisfy CDC Requirements | ● Data Measurements in °C and °F |
| ● CDC and VFC Compliant | ● Multi-LED for Alarm Status | ● Automatic Reading Interval Escalations |
| ● Customizable Recording Intervals | ● Data Access via USB | ● Current, Min, and Max Temperature Display |
| ● Audio and Visual Alerts on Device | ● FDA 21 CFR Part 11 Compliant | ● Dual Power ― Battery & USB Power |
Product Specifications
| Temperature Range: | -40°C to 85°C (-40°F to 185°F) |
| Accuracy: | ±0.5°C (-20°C to 40°C); ±1°C (Others) |
| Resolution: | Temperature 0.1°C |
| Ambient Operating Range: | -30°C to 70°C (-22°F to 158°F). *At low-temperature environments, the LCD screen will display records at a slower rate. This is corrected when the ambient temperature returns to normal. |
| Record Capacity: | 16,000 Data Points (Max) |
| Record Interval: | 10 Sec – 24 Hour Continuously Set |
| Data Interface: | USB |
| Alarms: | Visual and Audio Alarm Indicators |
| Power Supply: | (1) Single-use 3.6V Lithium Battery; Optional ― USB Power Supply |
| Battery Life: | Two years at room temperature with 15-minute record interval and buzzer alarm disabled. |
| Dimensions: | Height: 4.64″ (118mm) |
| Width: 2.42″ (61.5mm) | |
| Thickness: 0.75″ (19mm) | |
| Certificates: | NIST Traceable Certificate at Device Level |
| Warranty: | 1-Year Warranty |
How It Works
Configure Sensor
Set the sensor’s parameters that ensure you are meeting compliance and receiving alarms.
Transport & Monitor
The SensoTag-Vaccine data logger stores up to 16,000 data points during transportation.
View Data Measurements
Connect the sensor to your computer, download records, and view a graph of readings.
