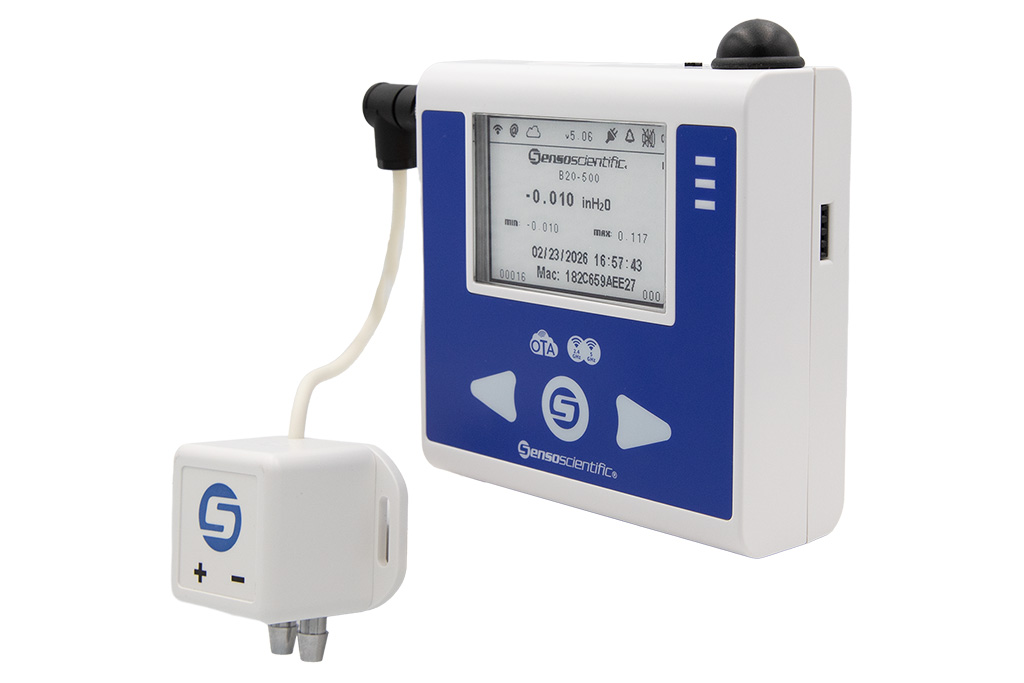

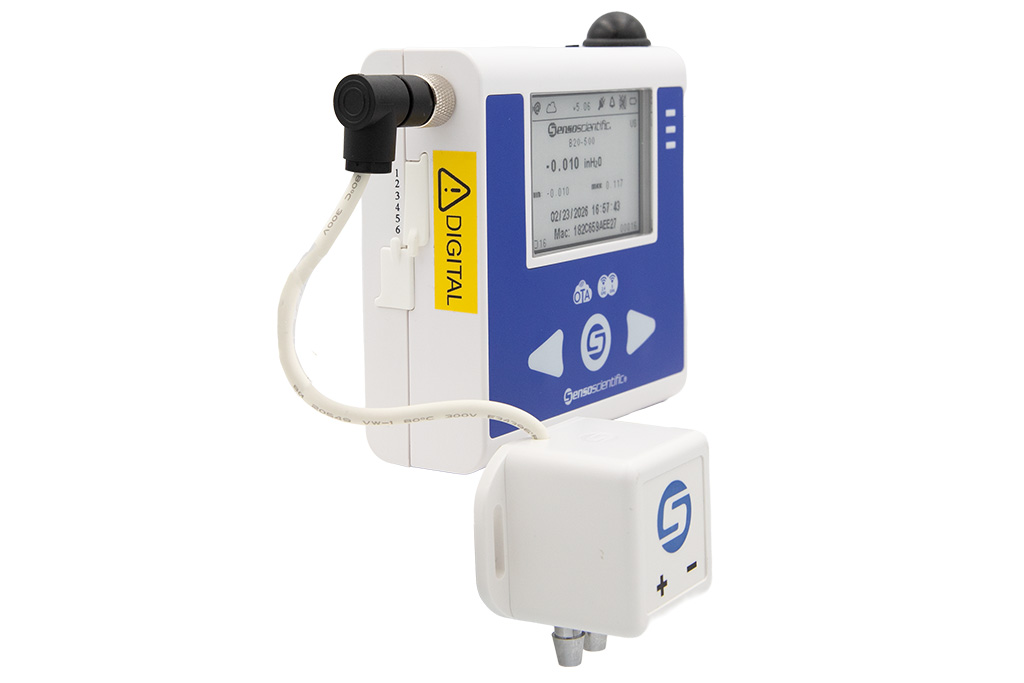

Differential Pressure Sensor ― Wi-Fi OTA

B20-200-OTA, B20-500-OTA

Monitor differential pressure between positive and negative pressure locations up to ±0.1 inWC. Available in both single-band (2.4 GHz) and dual-band (2.4 GHz / 5 GHz) connectivity.

Differential Pressure Sensor ― Wi-Fi OTA
Differential Pressure Sensor ― Wi-Fi OTA
Differential Pressure Sensor ― Wi-Fi OTA
  • Differential Pressure Sensor ― Wi-Fi OTA
  • Differential Pressure Sensor ― Wi-Fi OTA
  • Differential Pressure Sensor ― Wi-Fi OTA

Request Pricing and Information

"*" indicates required fields

Name*
Are you interested in a free trial?
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.

Request Pricing and Information

"*" indicates required fields

Name*
Are you interested in a free trial?
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is hidden when viewing the form
This field is for validation purposes and should be left unchanged.
  • Product Description
  • Key Features
  • Product Specifications

SensoScientific Wi-Fi transmitters are advanced wireless modules designed for secure, high-speed data collection, storage, and transmission. Operating over standard 802.11 b/g/n Wi-Fi networks (RF frequency 2.4 to 2.497 GHz) with TCP protocol, these transmitters ensure reliable connectivity while maintaining PEAPv0 enterprise security. They seamlessly integrate with standard access points, enabling compatibility with any Wi-Fi-enabled network. Each transmitter monitors user-defined preset conditions and provides customizable alerts through SMS, text messages, voice calls, pagers, cell phones, faxes, and emails. Data recorded in PPB or PPM is time-stamped and securely stored in a tamper-proof database, ensuring integrity and accuracy for critical monitoring needs. This robust solution is ideal for applications requiring dependable real-time monitoring and secure data management.

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC
●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability
●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud
●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software
Differential Pressure Range: ±0.1 inWC
Accuracy: ±0.001 inWC
Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
RF Frequency: 2.4 to 2.497 GHz
Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)
Battery Life: 1 Year
Dimensions: Height: 4.25″ (108mm)
Width: 3.88″ (98mm)
Length: 1.38″ (35mm)
LDAP: Single Sign-on Capability
Certificates: Device-level Certificates
Warranty: 1-Year Warranty

Product Description

SensoScientific Wi-Fi transmitters are advanced wireless modules designed for secure, high-speed data collection, storage, and transmission. Operating over standard 802.11 b/g/n Wi-Fi networks (RF frequency 2.4 to 2.497 GHz) with TCP protocol, these transmitters ensure reliable connectivity while maintaining PEAPv0 enterprise security. They seamlessly integrate with standard access points, enabling compatibility with any Wi-Fi-enabled network. Each transmitter monitors user-defined preset conditions and provides customizable alerts through SMS, text messages, voice calls, pagers, cell phones, faxes, and emails. Data recorded in PPB or PPM is time-stamped and securely stored in a tamper-proof database, ensuring integrity and accuracy for critical monitoring needs. This robust solution is ideal for applications requiring dependable real-time monitoring and secure data management.

Key Features

●  Onboard, Low Power E-Ink Display ●  Push Button for Real-Time Readings ●  Dual Power ― Battery & AC
●  True Embedded Wi-Fi Solution ●  NIST & A2LA Accredited SNAP Calibration ●  Enterprise-Wide Scalability
●  Device-Level Certificates ●  Multi-LED for Connectivity Status ●  FIPS Compliant Validated Cloud
●  FDA 21 CFR Part 11 Compliant ●  Lowest Total Cost of Ownership ●  No Proprietary Software

Product Specifications

Differential Pressure Range: ±0.1 inWC
Accuracy: ±0.001 inWC
Ambient Operating Range: 0°C to 75°C (32°F to 167°F); Up to 95% RH
Memory: Unlimited Cloud Memory; On-transmitter Buffer Storage (4000 Readings)
Alarms: Onboard Visual and Audible Alarms; 24/7 Alert Notifications through the Cloud
RF Frequency: 2.4 to 2.497 GHz
Radio Protocol: IEEE802.11 b/g/n Compatible 54Mbit/sec
Enterprise Security: PEAPv0 with EAP-MSCAPv2 (PEAP)
Housing: ABS Plastic Enclosure with Silicon Rubber Covers and Open Ports
Mounting: Zip Tie Mount Hooked with Screw Holster Wall Mount
Power Supply: (4) 1.5V AA Batteries (Lithium or Alkaline); Optional ― AC/DC Power Supply (UL Certified)
Battery Life: 1 Year
Dimensions: Height: 4.25″ (108mm)
Width: 3.88″ (98mm)
Length: 1.38″ (35mm)
LDAP: Single Sign-on Capability
Certificates: Device-level Certificates
Warranty: 1-Year Warranty

How It Works

Wireless Sensor

Data Loggers use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.

SensoScientific Cloud

From the cloud, you can customize node settings, generate reports, and more.

24/7 Alert Notifications

The cloud sends real-time notifications when readings fall outside range.
