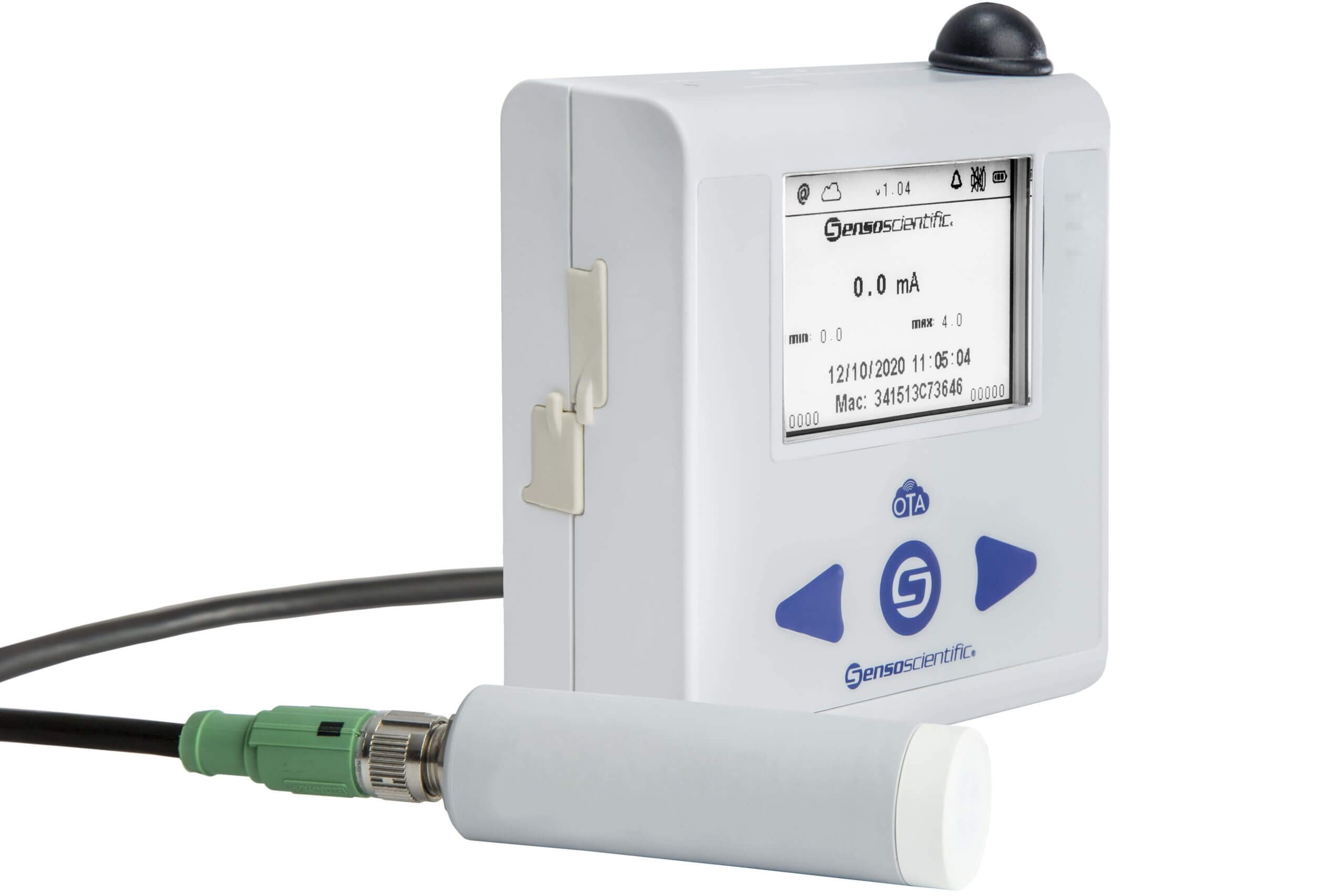

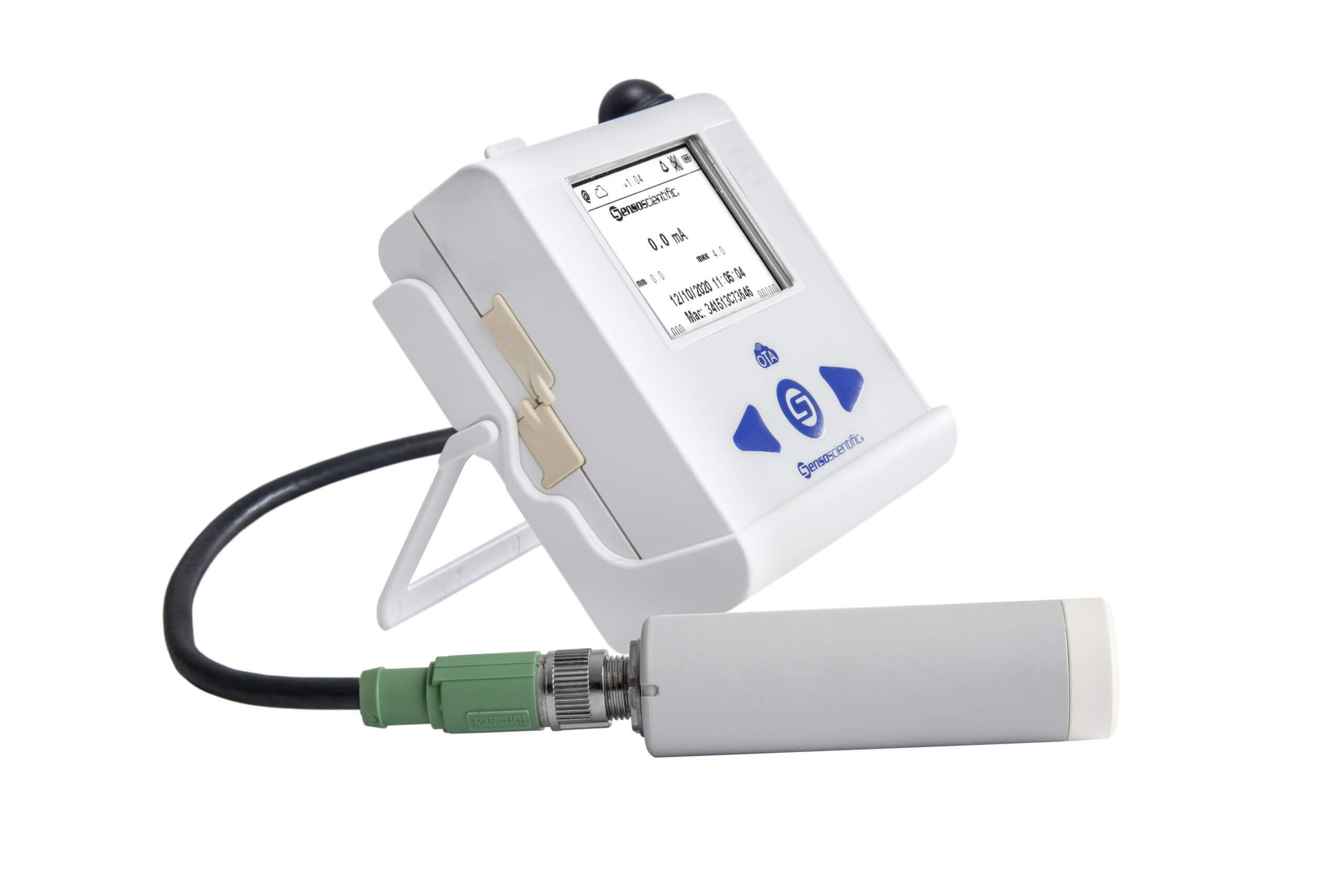

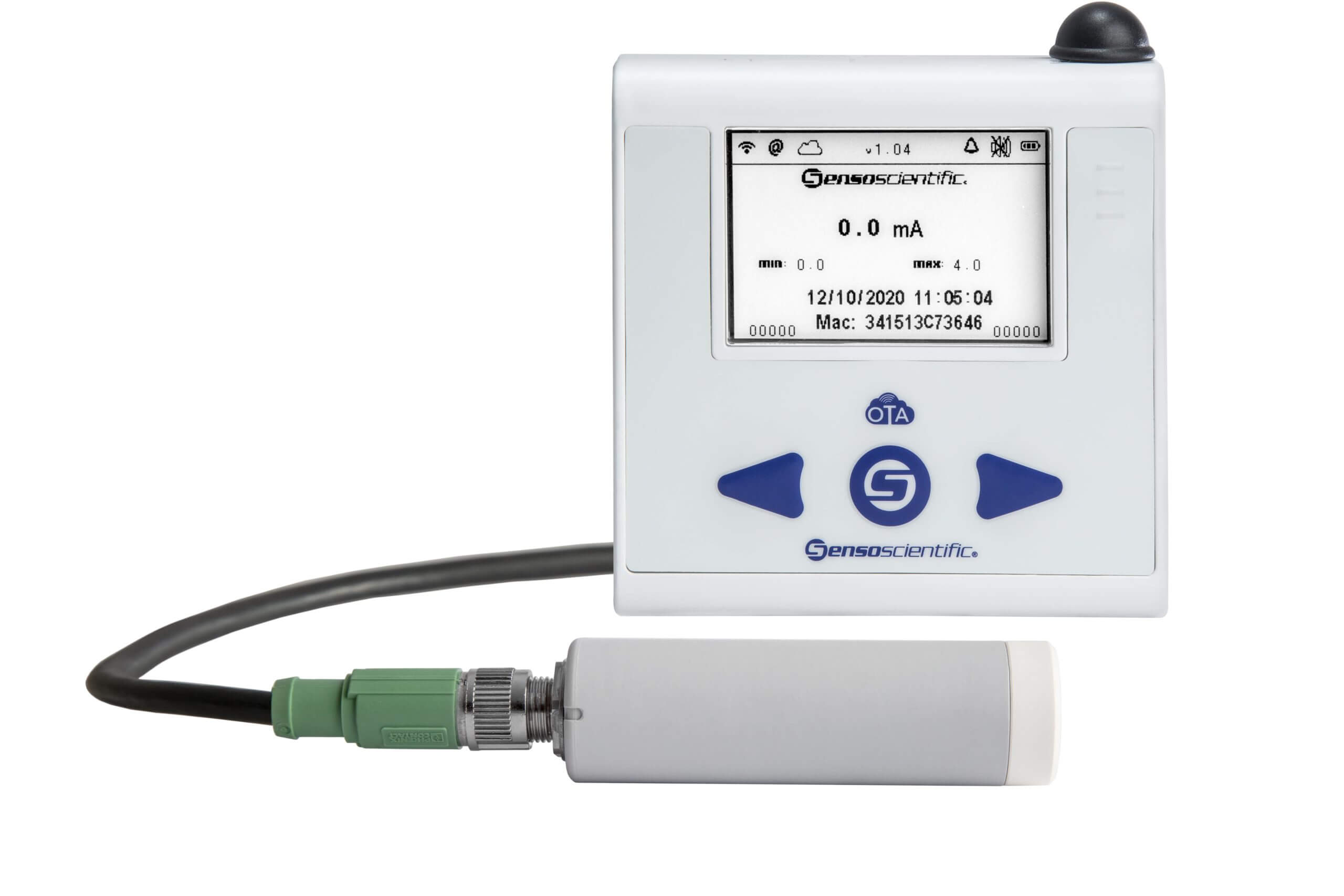

Carbon Dioxide Probe, 4-20mA (0 to 20% CO₂)
Measure carbon dioxide emissions up to 20% CO₂.
Request Pricing and Information
"*" indicates required fields
Request Pricing and Information
"*" indicates required fields
- Product Description
- Key Features
- Product Specifications
- Part Numbers
SensoScientific’s 4-20mA Universal CO₂ sensor is the leading device to monitor carbon dioxide emissions. With a range of 0 to 20% CO₂, this sensor measures and records CO₂ readings then uses your existing Wi-Fi network to send collected data to the SensoScientific Cloud. This allows for real-time data access and immediate alert notifications sent via SMS, text message, voice, pager, cell phone, fax, email, and more. The SensoScientific Cloud allows you to access comprehensive reporting, view real-time data, print A2LA Accredited calibration certificates, and more. All data is time-stamped and cannot be altered according to FDA 21 CFR Part 11 requirements.
| ● CO₂ Range: 0% to 20% CO₂ | ● Intelligent, Stand-Alone Probe | ● Superior Long-Term Stability |
| ● Humidity Range: 0% to 100% RH | ● Calibration Certificate Included | ● SensoScientific Universal Sensor Compatibility |
| ● 4-20mA Output | ● Operating Range: -40°C to 60°C | ● IP65-Classified Housing |
| ● Full Temperature and Pressure Compensations | ● Easy Installation | ● Heated Sensor Head to Prevent Condensation |
| Current: | 4-20mA |
| CO₂ Range: | 0 to 20% CO₂ |
| Accuracy at 25°C (77°F) and 1013 hPa | At 5% CO₂ …………. ±0.1% CO₂ |
| (Incl. Repeatability and Non-Linearity): | At 0 to 8% CO₂ …… ±0.2% CO₂ |
| At 8 to 20% CO₂ ….. ±0.4% CO₂ | |
| Calibration Uncertainty: | At 5% CO₂ ………….. ±0.07% CO₂ |
| At 20% CO₂ ………… ±0.27% CO₂ | |
| Long-Term Stability: | At 0 to 8% CO₂ …… ±0.3% CO₂ per Year |
| At 8 to 12% CO₂ …. ±0.5% CO₂ per Year | |
| At 12 to 20% CO₂ .. ±0.3% CO₂ per Year | |
| Operating Temperature Range: | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity Range: | 0% to 100% RH, Non-Condensing |
| Weight, Probe: | 45 g (1.59 oz) |
| Probe Housing Material: | PBT Polymer |
| Filter Material: | PTEE Membrane, PBT Polymer Grid |
| Connector Material: | Nickel Plated Brass, M12 / 5-pin |
| IP Rating, Probe Body: | IP65 |
| Connector Type: | M12 5-pin Male |
| Dimensions: | Diameter: 0.98″ (25mm) |
| Length: 3.78″ (96mm) |
| GAS06-1 | Carbon Dioxide Probe |
| GMP251 | CO2 Sensor (0-20%CO2) |
Product Description
SensoScientific’s 4-20mA Universal CO₂ sensor is the leading device to monitor carbon dioxide emissions. With a range of 0 to 20% CO₂, this sensor measures and records CO₂ readings then uses your existing Wi-Fi network to send collected data to the SensoScientific Cloud. This allows for real-time data access and immediate alert notifications sent via SMS, text message, voice, pager, cell phone, fax, email, and more. The SensoScientific Cloud allows you to access comprehensive reporting, view real-time data, print A2LA Accredited calibration certificates, and more. All data is time-stamped and cannot be altered according to FDA 21 CFR Part 11 requirements.
Key Features
| ● CO₂ Range: 0% to 20% CO₂ | ● Intelligent, Stand-Alone Probe | ● Superior Long-Term Stability |
| ● Humidity Range: 0% to 100% RH | ● Calibration Certificate Included | ● SensoScientific Universal Sensor Compatibility |
| ● 4-20mA Output | ● Operating Range: -40°C to 60°C | ● IP65-Classified Housing |
| ● Full Temperature and Pressure Compensations | ● Easy Installation | ● Heated Sensor Head to Prevent Condensation |
Product Specifications
| Current: | 4-20mA |
| CO₂ Range: | 0 to 20% CO₂ |
| Accuracy at 25°C (77°F) and 1013 hPa | At 5% CO₂ …………. ±0.1% CO₂ |
| (Incl. Repeatability and Non-Linearity): | At 0 to 8% CO₂ …… ±0.2% CO₂ |
| At 8 to 20% CO₂ ….. ±0.4% CO₂ | |
| Calibration Uncertainty: | At 5% CO₂ ………….. ±0.07% CO₂ |
| At 20% CO₂ ………… ±0.27% CO₂ | |
| Long-Term Stability: | At 0 to 8% CO₂ …… ±0.3% CO₂ per Year |
| At 8 to 12% CO₂ …. ±0.5% CO₂ per Year | |
| At 12 to 20% CO₂ .. ±0.3% CO₂ per Year | |
| Operating Temperature Range: | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity Range: | 0% to 100% RH, Non-Condensing |
| Weight, Probe: | 45 g (1.59 oz) |
| Probe Housing Material: | PBT Polymer |
| Filter Material: | PTEE Membrane, PBT Polymer Grid |
| Connector Material: | Nickel Plated Brass, M12 / 5-pin |
| IP Rating, Probe Body: | IP65 |
| Connector Type: | M12 5-pin Male |
| Dimensions: | Diameter: 0.98″ (25mm) |
| Length: 3.78″ (96mm) |
Part Numbers
| GAS06-1 | Carbon Dioxide Probe |
| GMP251 | CO2 Sensor (0-20%CO2) |
How It Works
Probe
Probes attach to SensoScientific nodes via M8 connector to measure desired parameters.
Wireless Sensor
Nodes use Wi-Fi to upload data to the SensoScientific Cloud for immediate use.
SensoScientific Cloud
From the cloud, you can view calibration certificates, access data records, and more.
